Context Caching & Compaction in Google ADK

This tutorial explores how to use the Google Agent Development Kit (ADK) to build production-grade agents that remain fast and cost-effective, even during long-running sessions.

Objectives

• Gain an overview of the core problem of long context (context bloat)

• Explore how Context Caching & Compaction are implemented via ADK

  • Explore the main patterns in Context Caching & Compaction

What to build

Policy Compliance Agent:

• Imagine an agent designed to answer complex employee questions based on a 10,000-word corporate policy manual.

Context Caching:

• Used to store the massive policy manual (the “Static Instruction”) on the server.

• Instead of sending those 10,000 words to the LLM on every single turn, the ADK reuses a cached “fingerprint,” drastically reducing latency and costs.

Context Compression:

• Is used when the employee enters a long back-and-forth troubleshooting session.

• After every 3 turns, the ADK summarizes the previous history into a “compacted event,” ensuring the LLM doesn’t get overwhelmed by “Context Rot” or hit its token limit.

The Core Problem: Context Bloat

In a standard LLM request, every turn sends the entire history back to the model.

• Latency: More tokens = slower “Time to First Token.”

• Cost: You pay for the same instructions over and over.

• Reasoning: Models can “forget” the middle of a massive context (Lost in the Middle).

Pattern: Static Instruction Caching

Note

Concept:

Context Caching allows the model to store a “fingerprint” of a large prefix (like a 50-page manual) so it doesn’t have to re-process it on every turn.

Code snippet

Implementation Pattern:

In your app.py, you configure the ContextCacheConfig. This targets the static_instruction defined in your agent.

# Configuration from your script
context_cache_config = ContextCacheConfig(
    min_tokens=2048,    # Trigger: Only cache if the manual is > 2k tokens
    ttl_seconds=1800,   # Persistence: Keep the "fingerprint" for 30 mins
    cache_intervals=10  # Rotation: Refresh after 10 uses to ensure freshness
)

• min_tokens: Caching has a small overhead. Don’t cache short greetings; only cache “heavy” knowledge

• ttl_seconds: If a user stops chatting, ADK automatically deletes the cache to save resources

Pattern: Sliding Window History Compaction

Note

Concept:

Events Compaction (Compression) is the process of summarizing the last N turns into a single “Memory Event.”

Implementation Pattern:

The EventsCompactionConfig manages the “Live History” of the session.

Code snippet

# Configuration from your script
events_compaction_config = EventsCompactionConfig(
    compaction_interval=3, # Frequency: Summarize every 3 turns
    overlap_size=1         # Continuity: Keep the very last turn uncompressed
)

How it works (The Sliding Window)

• Turns 1-2: Full history is sent.

• Turn 3: ADK triggers a background summarization.

• Turn 4: Instead of sending Turns 1, 2, and 3, ADK sends: [Summary of 1-2] + [Full Turn 3 (Overlap)] + [New Query]

The “Overlap” Secret: Setting overlap_size=1 is critical. It ensures the model sees the exact wording of the previous turn, preventing the “robotic” feel that occurs when a conversation is 100% summarized.

Architectural Summary

Feature	Target	Key Benefit
Caching	static_instruction	Reduces $ (Input Tokens)
Compaction	conversation_history	Maintains Reasoning Speed

Implementation

Python Code

import os
import google.auth
from google.adk.models import Gemini
from google.genai import types
from google.adk.agents import Agent
from google.adk.apps.app import App, EventsCompactionConfig
from google.adk.agents.context_cache_config import ContextCacheConfig

# This massive string is what we want to cache!
POLICY_MANUAL = """
https://artificialintelligenceact.eu/high-level-summary/
"""

_, project_id = google.auth.default()
os.environ["GOOGLE_CLOUD_PROJECT"] = project_id
os.environ["GOOGLE_CLOUD_LOCATION"] = "global"
os.environ["GOOGLE_GENAI_USE_VERTEXAI"] = "True"

my_agent = Agent(
    name="compliance_specialist",
    model=Gemini(
        model="gemini-3-flash-preview",   # swap for gemini-3-flash-preview when GA
        retry_options=types.HttpRetryOptions(attempts=3),
    ),
    static_instruction=f"You are a compliance expert. Use this link {POLICY_MANUAL} to access the manual when answering queries",
    instruction="Be professional, cite specific sections, and always ask if the user needs further clarification."
)

# Configure the ADK Runtime
app = App(
    name='policy_compliance_agent',
    root_agent=my_agent,

    # 1. Context Caching: Handles the 'Static Instruction' (Policy Manual)
    context_cache_config=ContextCacheConfig(
        min_tokens=2048,    # Only trigger cache for large prompts
        ttl_seconds=1800,   # Keep the policy manual in cache for 30 mins
        cache_intervals=10  # Automatically refresh the cache after 10 turns
    ),

    # 2. Context Compression: Handles the 'Live History' (The Conversation)
    events_compaction_config=EventsCompactionConfig(
        compaction_interval=3, # Every 3 user turns, summarize the history
        overlap_size=1         # Keep the most recent turn in full to maintain flow
    )
)

Agent in action

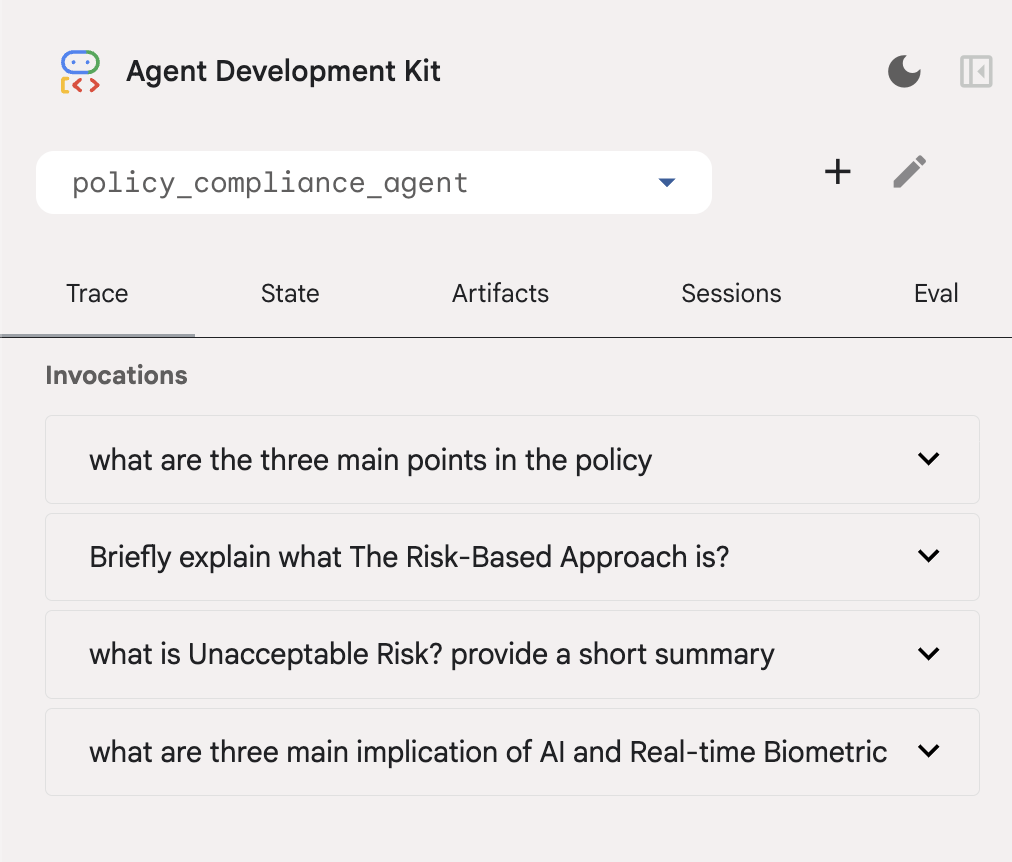

Agent initiation:

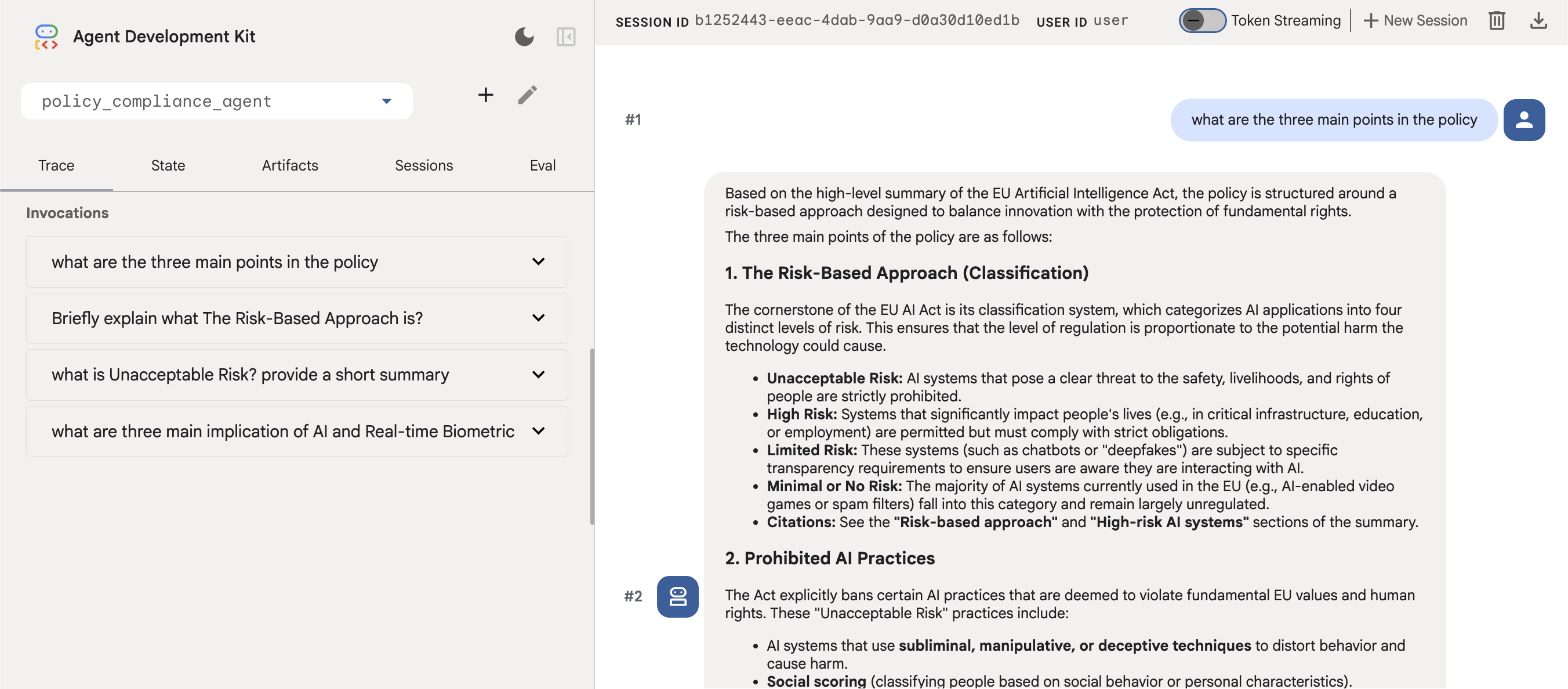

First four turns & token count:

Turn	Total token count
1	1222
2	1548
3	2009
4	1620
